6ED1052-1MD08-0BA1 Siemens LOGO 8 12/24RCE Basic module with Display
Description :

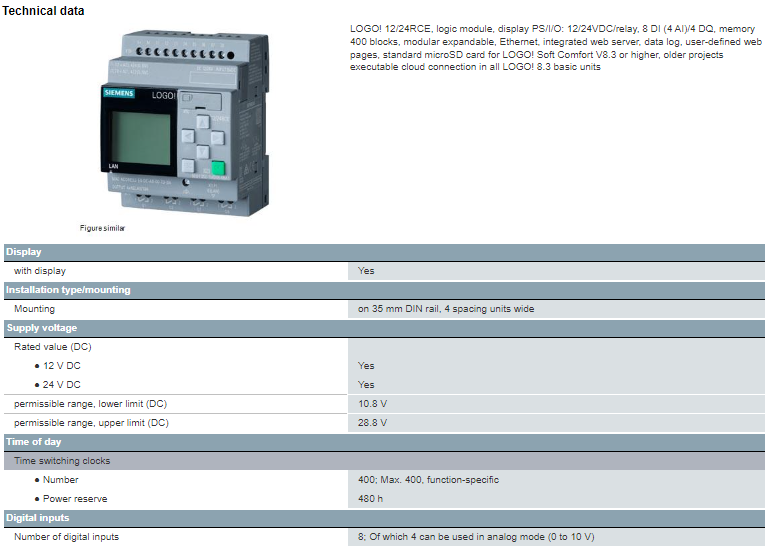

LOGO! 12/24RCE, logic module, display PS/I/O: 12/24VDC/relay, 8 DI (4 AI)/4 DQ, memory 400 blocks,
modular expandable, Ethernet, integrated web server, data log, user-defined web pages, standard microSD card
for LOGO! Soft Comfort V8.3 or higher, older projects executable cloud connection in all LOGO! 8.3 basic units
Mandatory Additional Product :
6ED1055-1CB00-0BA2:
LOGO! DM8 24 expansion module, PS/I/O: 24V/24V/trans., 4 DI/4 DO for LOGO! 8
6BK1700-0BA20-0AA0:
LOGO! CMK2000 Communication module for integrating the LOGO! 8 "in the building system bus KNX;" connection 24 V DC 0.04A 1 RJ45 port for Ethernet 50 communication objects time-of-day synchronization Configuration/diagnostics via web interface
6ED1055-1CB10-0BA2:
LOGO! DM16 24 expansion module, PS/I/O: 24 V DC/24 V DC/trans., 8 DI/8 DO, 4 MW for LOGO! 8
6ED1057-4CA00-0AA0:
LOGO! contact 24 Switching module for direct switching of resistive loads up to 20 A and motors up to 4 kW, 24 V DC, 3 NO contacts+1 NC EAN: 4025515050742
What is the main function of this Siemens Logic Module?
The Siemens 6ED1052-1MD08-0BA1 is a Logic Module with Display. It is designed to perform small automation tasks, making it a versatile and essential component in various industrial applications.
What are the key features of this Logic Module?
This Logic Module is equipped with an Ethernet port for easy communication with other modules and SIMATIC S7 systems. It also has an integrated web server for monitoring and control via WLAN and the Internet. The module supports a temperature range of -20 °C to +55 °C, making it suitable for a wide range of environments.
What is the power supply requirement for this part?
The Siemens 6ED1052-1MD08-0BA1 operates on a power supply of 12 to 24 V DC.
How many digital and analog inputs does this Logic Module support?
The Siemens 6ED1052-1MD08-0BA1 supports 8 digital inputs, of which 4 can be used as analog inputs (0 to 10 V).
What is the output capacity of this Logic Module?
This Logic Module can support up to 4 outputs (0 to 10 V) with a relay capacity of 10 A.
Does this Logic Module come with a display?
Yes, the Siemens 6ED1052-1MD08-0BA1 comes with a display. It has a six-line display with 16 characters per line, allowing for clear formulation of message texts.
Is this Logic Module compatible with previous versions?
Yes, all devices of the Siemens 6ED1052-1MD08-0BA1 are equipped with an Ethernet port and connections are compatible with previous versions.
What is the operating temperature range for this Logic Module?
The Siemens 6ED1052-1MD08-0BA1 can operate in a temperature range of -20 °C to +55 °C.
